Name: AO7408
Brand: Alpha & Omega Semiconductor Inc.
SKU: AO7408
Price: 0.10 USD
Availability: InStock

REF: AO7408 Alpha & Omega Semiconductor Inc.

AO7408

Alpha & Omega Semiconductor Inc.

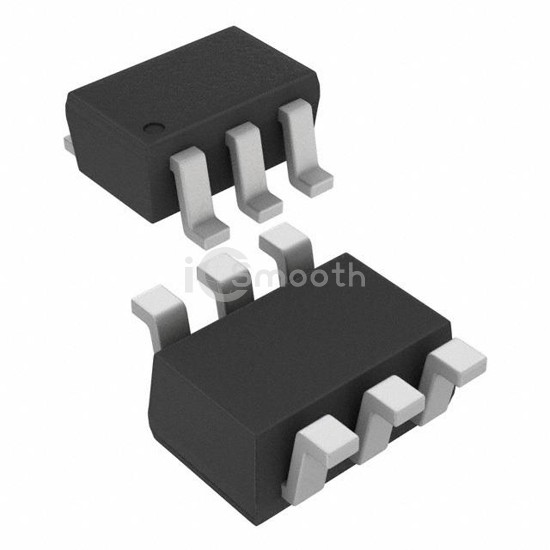

MOSFET N-CH 20V 2A SC70-6

AO7408 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 20V 2A SC70-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-TSSOP, SC-88, SOT-363.

Datasheet Request a Quote

In Stock: 6,952

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	62mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	320 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	350mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-70-6
Package / Case	6-TSSOP, SC-88, SOT-363
