Name: AO6701
Brand: Alpha & Omega Semiconductor Inc.
SKU: AO6701
Availability: InStock

REF: AO6701 Alpha & Omega Semiconductor Inc.

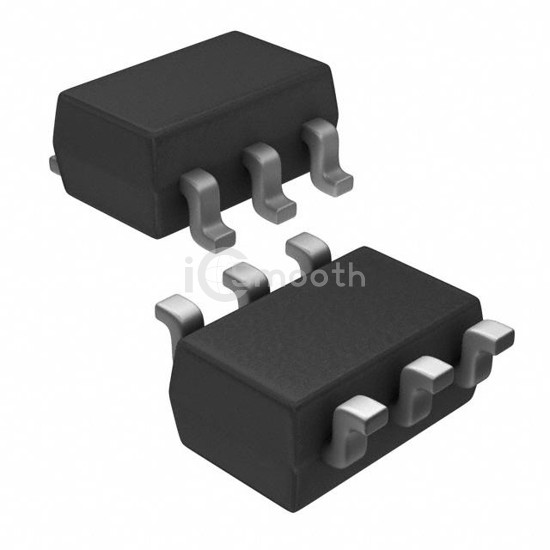

AO6701

MOSFET P-CH 30V 2.3A 6TSOP

AO6701 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET P-CH 30V 2.3A 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-74, SOT-457.

Datasheet Request a Quote

In Stock: 5,724

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	2.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	135mOhm @ 2.3A, 10V
Vgs(th) (Max) @ Id	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4.9 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	409 pF @ 15 V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	1.15W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SC-74, SOT-457
