Name: AO5404E
Brand: Alpha & Omega Semiconductor Inc.
SKU: AO5404E
Price: 0.37 USD
Availability: InStock

REF: AO5404E Alpha & Omega Semiconductor Inc.

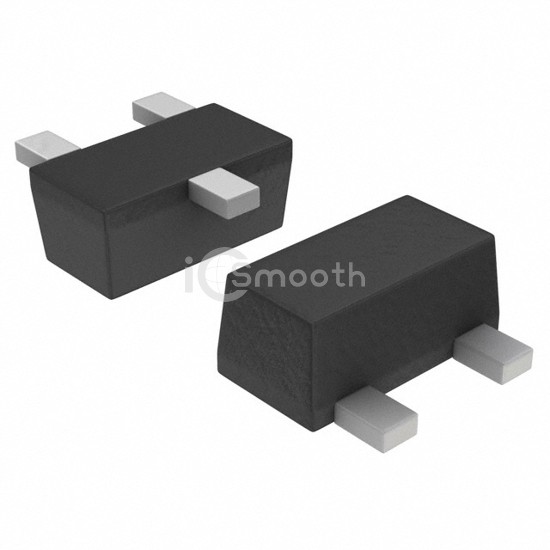

AO5404E

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 20V 500MA SC89-3

AO5404E is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 20V 500MA SC89-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-89, SOT-490.

Datasheet Request a Quote

In Stock: 1

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	550mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	45 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	280mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-89-3
Package / Case	SC-89, SOT-490
