Name: UDK2559EB
Brand: Allegro MicroSystems
SKU: UDK2559EB
Price: 3.29 USD
Availability: InStock

REF: UDK2559EB Allegro MicroSystems

UDK2559EB

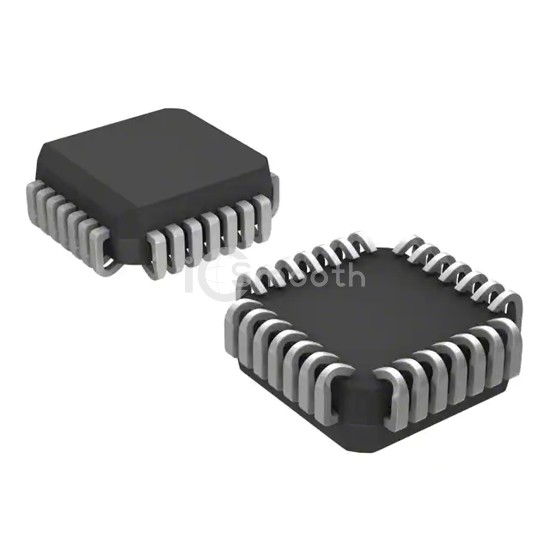

IC PWR DRIVER BIPOLAR 1:1 28PLCC

UDK2559EB is a PMIC - Power Distribution Switches, Load Drivers manufactured by Allegro MicroSystems. IC PWR DRIVER BIPOLAR 1:1 28PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.75V ~ 5.25V, package / case 28-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 4,909

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	4
Ratio - Input:Output	1:1
Output Configuration	Low Side
Output Type	Bipolar
Interface	On/Off
Voltage - Load	60V (Max)
Voltage - Supply (Vcc/Vdd)	4.75V ~ 5.25V

Current - Output (Max)	700mA
Rds On (Typ)	-
Input Type	Non-Inverting
Features	-
Fault Protection	Current Limiting (Fixed), Over Temperature
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	28-PLCC (11.51x11.51)
Package / Case	28-LCC (J-Lead)
