ATS699LSN-RSWPH-T

In Stock: 5,979

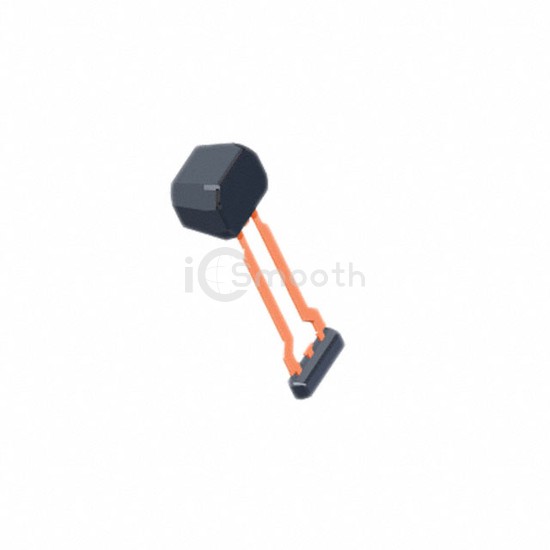

ATS699LSN-RSWPH-T - Allegro MicroSystems - Position Sensors - Angle, Linear Position Measuring
REF: ATS699LSN-RSWPH-T Allegro MicroSystems
ATS699LSN-RSWPH-T

Allegro MicroSystems

SENSOR ROTARY SOLDER PAD

ATS699LSN-RSWPH-T is a Position Sensors - Angle, Linear Position Measuring manufactured by Allegro MicroSystems. SENSOR ROTARY SOLDER PAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, voltage - supply 4V ~ 24V, package / case 3-SSIP Module.

Datasheet Request a Quote

In Stock: 5,979

Specifications

17 parameters
Product StatusActive
For MeasuringRotary Position
TechnologyResistive
Rotation Angle - Electrical, Mechanical-
Linear Range-
OutputResistive
Output SignalClockwise Increase
Actuator TypeExternal Magnet, Not Included
Linearity-
Resistance-
Resistance Tolerance-
Voltage - Supply4V ~ 24V
Mounting TypeThrough Hole
Termination StyleSolder Pad
Operating Temperature-40°C ~ 150°C
Package / Case3-SSIP Module
Supplier Device Package3-SIP
