EM3242

In Stock: 8,591

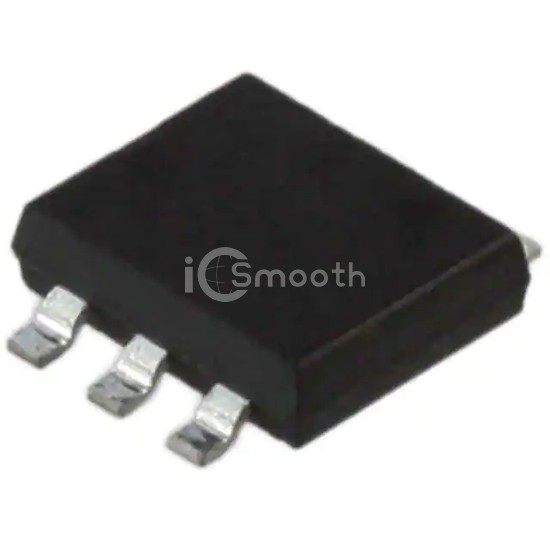

EM3242 - Asahi Kasei Microdevices/AKM - Position Sensors - Angle, Linear Position Measuring
REF: EM3242 Asahi Kasei Microdevices/AKM
EM3242

Asahi Kasei Microdevices/AKM

SENSOR ANGLE 360DEG SMD

EM3242 is a Position Sensors - Angle, Linear Position Measuring manufactured by Asahi Kasei Microdevices/AKM. SENSOR ANGLE 360DEG SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C, voltage - supply 2.7V ~ 3.3V, package / case 6-TSOP (0.118", 3.00mm Width).

Datasheet Request a Quote

In Stock: 8,591

Specifications

17 parameters
Product StatusObsolete
For MeasuringAngle
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical0° ~ 360°, Continuous
Linear Range-
OutputAnalog Voltage
Output Signal-
Actuator TypeExternal Magnet, Not Included
Linearity-
Resistance-
Resistance Tolerance-
Voltage - Supply2.7V ~ 3.3V
Mounting TypeSurface Mount
Termination StyleSMD (SMT) Tab
Operating Temperature-30°C ~ 85°C
Package / Case6-TSOP (0.118", 3.00mm Width)
Supplier Device Package6-SOP
