AK7452

In Stock: 2,582

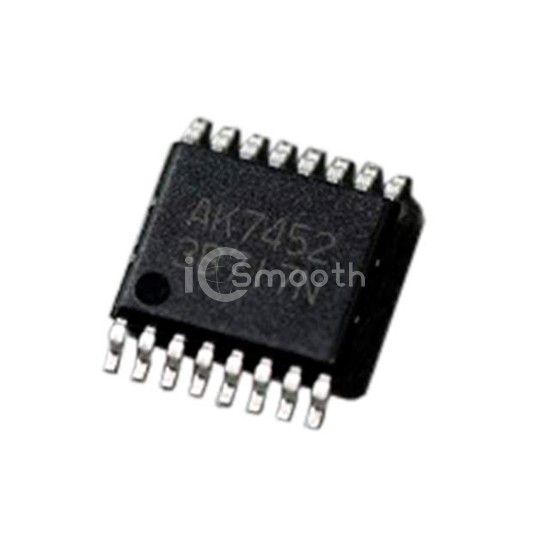

AK7452 - Asahi Kasei Microdevices/AKM - Position Sensors - Angle, Linear Position Measuring
REF: AK7452 Asahi Kasei Microdevices/AKM
AK7452

Asahi Kasei Microdevices/AKM

SENSOR ANGLE 360DEG SOLDER

AK7452 is a Position Sensors - Angle, Linear Position Measuring manufactured by Asahi Kasei Microdevices/AKM. SENSOR ANGLE 360DEG SOLDER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 3V ~ 5.5V, package / case 16-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 2,582

Specifications

17 parameters
Product StatusObsolete
For MeasuringAngle
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical360° (±180°), Continuous
Linear Range-
OutputAnalog Voltage
Output Signal-
Actuator TypeExternal Magnet, Not Included
Linearity±0.5°
Resistance-
Resistance Tolerance-
Voltage - Supply3V ~ 5.5V
Mounting TypeSurface Mount
Termination StyleGull Wing
Operating Temperature-40°C ~ 125°C
Package / Case16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package16-TSSOP
