C-MG2420-00

In Stock: 6,033

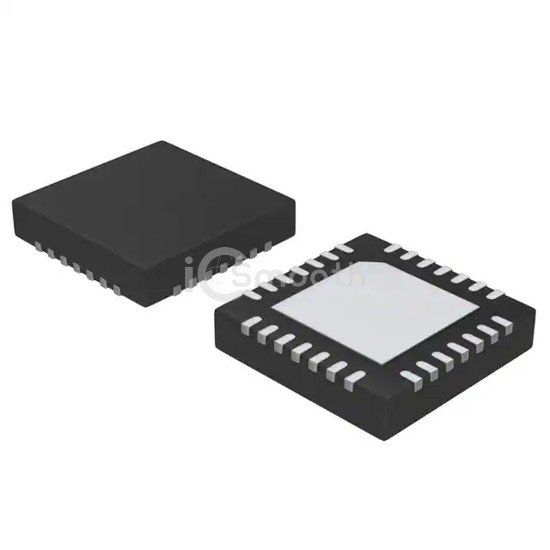

C-MG2420-00 - Zilog - RF Transceiver ICs
REF: C-MG2420-00 Zilog
C-MG2420-00

Zilog

IC RF TXRX 802.15.4 28VFQFN

C-MG2420-00 is a RF Transceiver ICs manufactured by Zilog. IC RF TXRX 802.15.4 28VFQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.8V ~ 3.6V, package / case 28-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,033

Specifications

19 parameters
Product StatusObsolete
TypeTxRx Only
RF Family/Standard802.15.4
ProtocolZigbee®
ModulationMSK, O-QPSK
Frequency2.4GHz
Data Rate (Max)3Mbps
Power - Output9dBm
Sensitivity-97dBm
Memory Size-
Serial InterfacesSPI
GPIO6
Voltage - Supply1.8V ~ 3.6V
Current - Receiving15.4mA
Current - Transmitting16.1mA ~ 28.4mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case28-VFQFN Exposed Pad
Supplier Device Package28-QFN (4x4)
