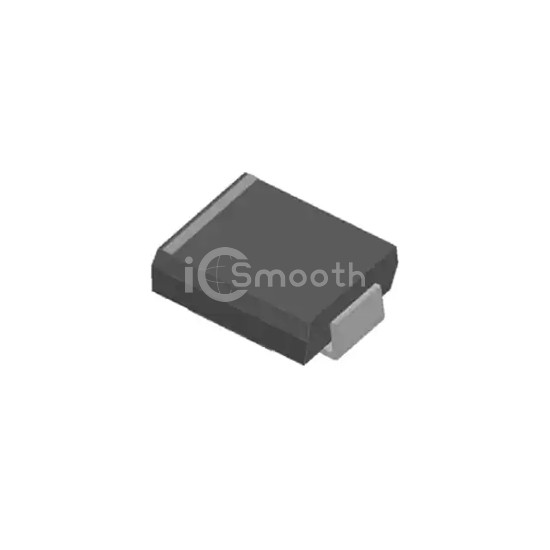

Name: SMCJ60A-F1-0000
Brand: Yangzhou Yangjie Electronic Technology Co.,Ltd
SKU: SMCJ60A-F1-0000
Price: 0.67 USD
Availability: InStock

REF: SMCJ60A-F1-0000 Yangzhou Yangjie Electronic Technology Co.,Ltd

SMCJ60A-F1-0000

Yangzhou Yangjie Electronic Technology Co.,Ltd

TVS DIODE 60VWM 96.8VC DO214AB

SMCJ60A-F1-0000 is a TVS - Diodes manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. TVS DIODE 60VWM 96.8VC DO214AB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 2,635

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	60V
Voltage - Breakdown (Min)	66.7V
Voltage - Clamping (Max) @ Ipp	96.8V
Current - Peak Pulse (10/1000µs)	15.5A

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	Telecom
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMC)
