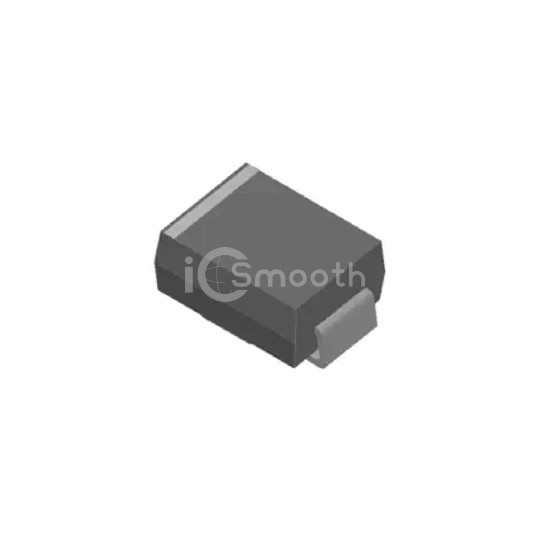

Name: SMBJ36CA-F1-1100HF
Brand: Yangzhou Yangjie Electronic Technology Co.,Ltd
SKU: SMBJ36CA-F1-1100HF
Price: 0.38 USD
Availability: InStock

REF: SMBJ36CA-F1-1100HF Yangzhou Yangjie Electronic Technology Co.,Ltd

SMBJ36CA-F1-1100HF

Yangzhou Yangjie Electronic Technology Co.,Ltd

TVS DIODE 36VWM 58.1VC DO214AA

SMBJ36CA-F1-1100HF is a TVS - Diodes manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. TVS DIODE 36VWM 58.1VC DO214AA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AA, SMB.

Datasheet Request a Quote

In Stock: 3,271

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	36V
Voltage - Breakdown (Min)	40V
Voltage - Clamping (Max) @ Ipp	58.1V
Current - Peak Pulse (10/1000µs)	10.33A

Power - Peak Pulse	600W
Power Line Protection	No
Applications	Telecom
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMB)
