Name: SMBJ220A-F1-0000HF
Brand: Yangzhou Yangjie Electronic Technology Co.,Ltd
SKU: SMBJ220A-F1-0000HF
Price: 0.38 USD
Availability: InStock

REF: SMBJ220A-F1-0000HF Yangzhou Yangjie Electronic Technology Co.,Ltd

SMBJ220A-F1-0000HF

Yangzhou Yangjie Electronic Technology Co.,Ltd

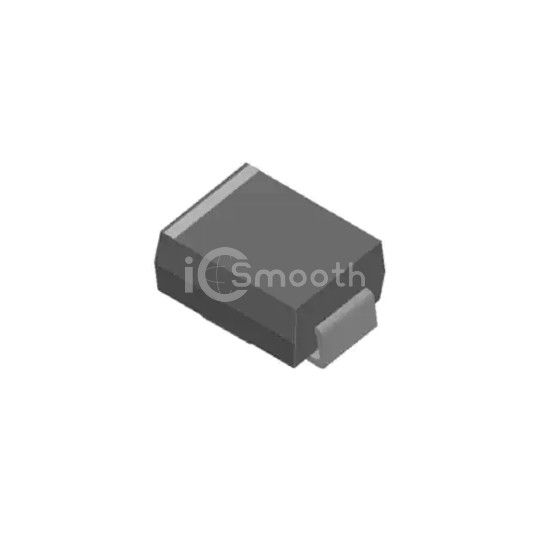

TVS DIODE 220VWM 356VC DO214AA

SMBJ220A-F1-0000HF is a TVS - Diodes manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. TVS DIODE 220VWM 356VC DO214AA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AA, SMB.

Datasheet Request a Quote

In Stock: 3,003

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	220V
Voltage - Breakdown (Min)	246V
Voltage - Clamping (Max) @ Ipp	356V
Current - Peak Pulse (10/1000µs)	1.69A

Power - Peak Pulse	600W
Power Line Protection	No
Applications	Telecom
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMB)
