MBR0520-F2-0000HF

In Stock: 2,790

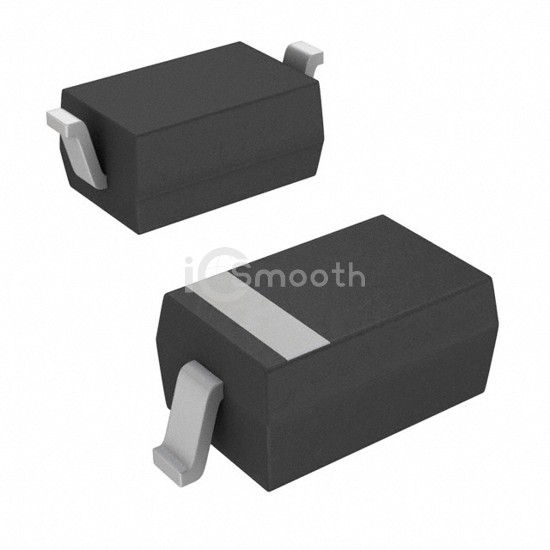

MBR0520-F2-0000HF - Yangzhou Yangjie Electronic Technology Co.,Ltd - Diodes - Rectifiers - Single
REF: MBR0520-F2-0000HF Yangzhou Yangjie Electronic Technology Co.,Ltd
MBR0520-F2-0000HF

Yangzhou Yangjie Electronic Technology Co.,Ltd

DIODE SCHOTTKY 20V 500MA SOD123

MBR0520-F2-0000HF is a Diodes - Rectifiers - Single manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. DIODE SCHOTTKY 20V 500MA SOD123. Key specifications: mounting type Surface Mount, package / case SOD-123.

Datasheet Request a Quote

In Stock: 2,790

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)500mA
Voltage - Forward (Vf) (Max) @ If450 mV @ 500 mA
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr200 µA @ 20 V
Capacitance @ Vr, F40pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseSOD-123
Supplier Device PackageSOD-123
Operating Temperature - Junction-55°C ~ 125°C
