Name: G3JF-F1-0000HF
Brand: Yangzhou Yangjie Electronic Technology Co.,Ltd
SKU: G3JF-F1-0000HF
Price: 0.22 USD
Availability: InStock

REF: G3JF-F1-0000HF Yangzhou Yangjie Electronic Technology Co.,Ltd

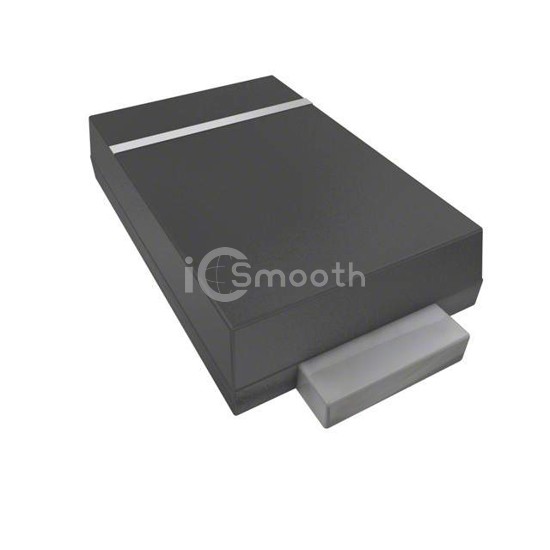

G3JF-F1-0000HF

Yangzhou Yangjie Electronic Technology Co.,Ltd

DIODE GEN PURP 600V 3A SMAF

G3JF-F1-0000HF is a Diodes - Rectifiers - Single manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. DIODE GEN PURP 600V 3A SMAF. Key specifications: mounting type Surface Mount, package / case DO-221AC, SMA Flat Leads.

Datasheet Request a Quote

In Stock: 8,742

Specifications

13 parameters

Product Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600 V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 3 A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	-

Current - Reverse Leakage @ Vr	5 µA @ 600 V
Capacitance @ Vr, F	18pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-221AC, SMA Flat Leads
Supplier Device Package	SMAF
Operating Temperature - Junction	-55°C ~ 150°C
