ES5J-F1-0000

In Stock: 3,190

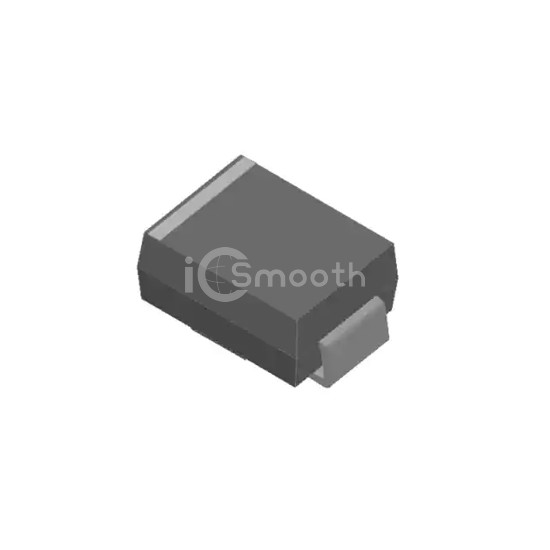

ES5J-F1-0000 - Yangzhou Yangjie Electronic Technology Co.,Ltd - Diodes - Rectifiers - Single
REF: ES5J-F1-0000 Yangzhou Yangjie Electronic Technology Co.,Ltd
ES5J-F1-0000

Yangzhou Yangjie Electronic Technology Co.,Ltd

DIODE GEN PURP 600V 5A DO214AB

ES5J-F1-0000 is a Diodes - Rectifiers - Single manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. DIODE GEN PURP 600V 5A DO214AB. Key specifications: mounting type Surface Mount, package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 3,190

Specifications

13 parameters
Product StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)600 V
Current - Average Rectified (Io)5A
Voltage - Forward (Vf) (Max) @ If1.7 V @ 5 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)35 ns
Current - Reverse Leakage @ Vr5 µA @ 600 V
Capacitance @ Vr, F35pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-214AB, SMC
Supplier Device PackageDO-214AB (SMC)
Operating Temperature - Junction-55°C ~ 150°C
