BAT54WS-F2-0000HF

In Stock: 6,279

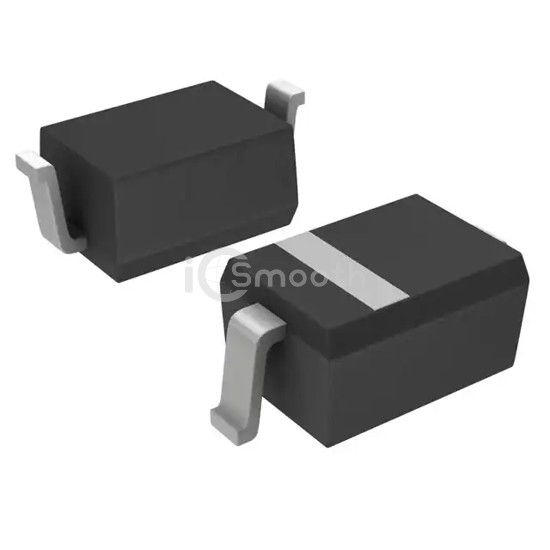

BAT54WS-F2-0000HF - Yangzhou Yangjie Electronic Technology Co.,Ltd - Diodes - Rectifiers - Single
REF: BAT54WS-F2-0000HF Yangzhou Yangjie Electronic Technology Co.,Ltd
BAT54WS-F2-0000HF

Yangzhou Yangjie Electronic Technology Co.,Ltd

DIODE SCHOTTKY 30V 200MA SOD323

BAT54WS-F2-0000HF is a Diodes - Rectifiers - Single manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. DIODE SCHOTTKY 30V 200MA SOD323. Key specifications: mounting type Surface Mount, package / case SC-76, SOD-323.

Datasheet Request a Quote

In Stock: 6,279

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io)200mA
Voltage - Forward (Vf) (Max) @ If1 V @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)5 ns
Current - Reverse Leakage @ Vr2 µA @ 25 V
Capacitance @ Vr, F10pF @ 1V, 1MHz
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
Operating Temperature - Junction-55°C ~ 125°C
