BAT54W-F2-0000HF

In Stock: 8,311

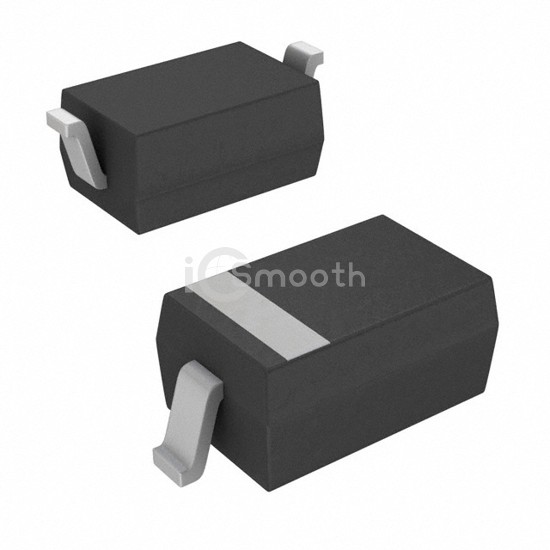

BAT54W-F2-0000HF - Yangzhou Yangjie Electronic Technology Co.,Ltd - Diodes - Rectifiers - Single
REF: BAT54W-F2-0000HF Yangzhou Yangjie Electronic Technology Co.,Ltd
BAT54W-F2-0000HF

Yangzhou Yangjie Electronic Technology Co.,Ltd

DIODE SCHOTTKY 30V 200MA SOD123

BAT54W-F2-0000HF is a Diodes - Rectifiers - Single manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. DIODE SCHOTTKY 30V 200MA SOD123. Key specifications: mounting type Surface Mount, package / case SOD-123.

Datasheet Request a Quote

In Stock: 8,311

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io)200mA
Voltage - Forward (Vf) (Max) @ If1 V @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr2 µA @ 25 V
Capacitance @ Vr, F10pF @ 1V, 1MHz
Mounting TypeSurface Mount
Package / CaseSOD-123
Supplier Device PackageSOD-123
Operating Temperature - Junction-55°C ~ 125°C
