B5817WS-F2-0000HF

In Stock: 2,815

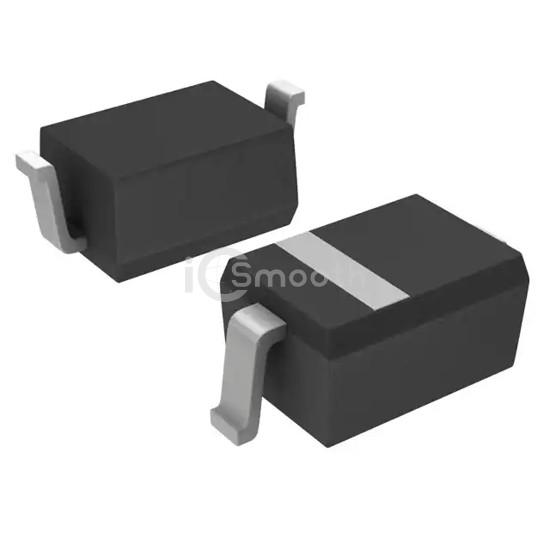

B5817WS-F2-0000HF - Yangzhou Yangjie Electronic Technology Co.,Ltd - Diodes - Rectifiers - Single
REF: B5817WS-F2-0000HF Yangzhou Yangjie Electronic Technology Co.,Ltd
B5817WS-F2-0000HF

Yangzhou Yangjie Electronic Technology Co.,Ltd

DIODE SCHOTTKY 20V 1A SOD323

B5817WS-F2-0000HF is a Diodes - Rectifiers - Single manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. DIODE SCHOTTKY 20V 1A SOD323. Key specifications: mounting type Surface Mount, package / case SC-76, SOD-323.

Datasheet Request a Quote

In Stock: 2,815

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)1A
Voltage - Forward (Vf) (Max) @ If450 mV @ 1 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr200 µA @ 20 V
Capacitance @ Vr, F120pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
Operating Temperature - Junction-65°C ~ 125°C
