Name: SJD12C22L01
Brand: YAGEO
SKU: SJD12C22L01
Price: 0.34 USD
Availability: InStock

REF: SJD12C22L01 YAGEO

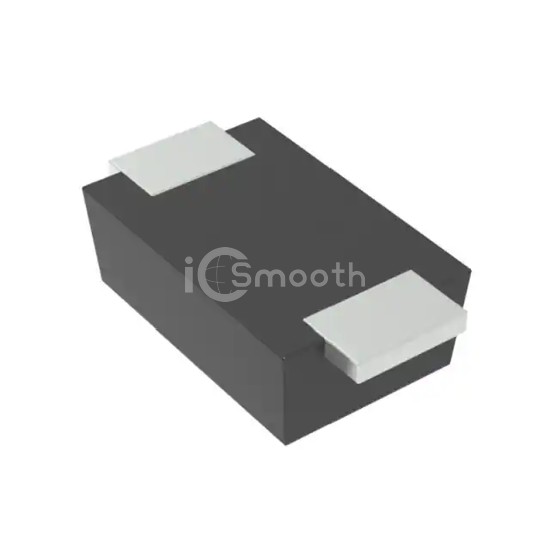

SJD12C22L01

TVS ESD, SOD-123S, 22V, 35.5V, R

SJD12C22L01 is a TVS - Diodes manufactured by YAGEO. TVS ESD, SOD-123S, 22V, 35.5V, R. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-219AA.

Datasheet Request a Quote

In Stock: 1,379

Tiered Pricing USD

1+ $0.3400 —

10+ $0.2100 -38%

100+ $0.1315 -61%

500+ $0.0975 -71%

1,000+ $0.0864 -75% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	5.7A

Power - Peak Pulse	200W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-219AA
Supplier Device Package	SOD-123S
