Name: 5.0SMDJ22A/TR13
Brand: YAGEO
SKU: 5.0SMDJ22A/TR13
Price: 1.09 USD
Availability: InStock

REF: 5.0SMDJ22A/TR13 YAGEO

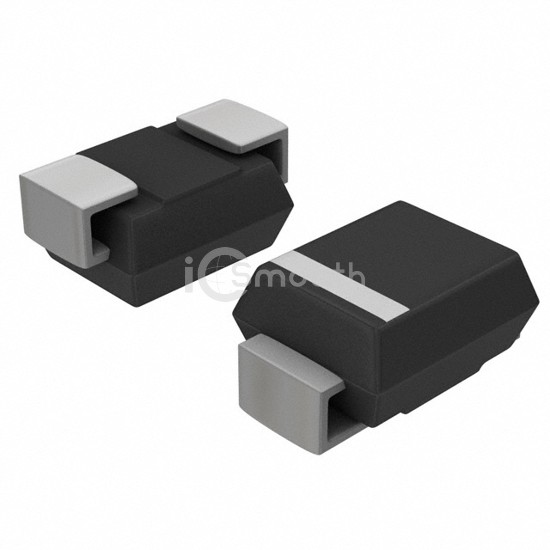

5.0SMDJ22A/TR13

5.0SMDJ, DO-214AB, 22V, 35.5V, R

5.0SMDJ22A/TR13 is a TVS - Diodes manufactured by YAGEO. 5.0SMDJ, DO-214AB, 22V, 35.5V, R. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 4,893

Tiered Pricing USD

1+ $1.0900 —

10+ $0.6840 -37%

100+ $0.4480 -59%

500+ $0.3465 -68%

1,000+ $0.3138 -71% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	141A

Power - Peak Pulse	5000W (5kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMC)
