Name: 824014883
Brand: Würth Elektronik
SKU: 824014883
Price: 1.27 USD
Availability: InStock

REF: 824014883 Würth Elektronik

824014883

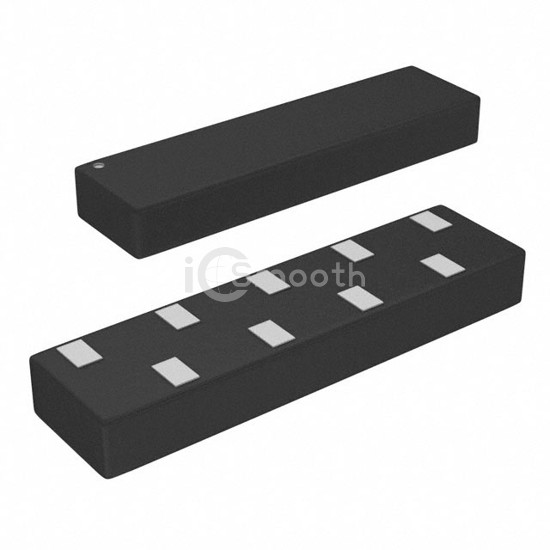

TVS DIODE 3.3VWM 9VC DFN3810-9

824014883 is a TVS - Diodes manufactured by Würth Elektronik. TVS DIODE 3.3VWM 9VC DFN3810-9. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 85°C (TA), package / case 9-UDFN.

Datasheet Request a Quote

In Stock: 2,031

Tiered Pricing USD

1+ $1.2700 —

10+ $1.1520 -9%

100+ $1.0340 -19%

500+ $0.9060 -29%

1,000+ $0.8110 -36% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	8
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	4.5V
Voltage - Clamping (Max) @ Ipp	9V (Typ)
Current - Peak Pulse (10/1000µs)	5A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.5pF @ 1MHz
Operating Temperature	-55°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	9-UDFN
Supplier Device Package	DFN3810-9
