Name: 824012823
Brand: Würth Elektronik
SKU: 824012823
Price: 0.69 USD
Availability: InStock

REF: 824012823 Würth Elektronik

824012823

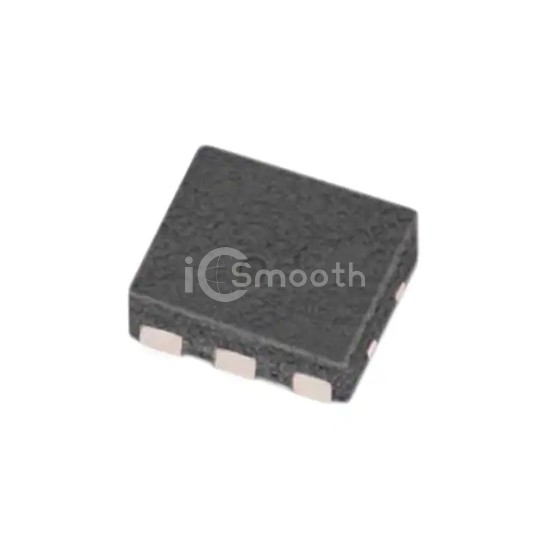

TVS DIODE 3.3VWM 13VC DFN1210-6

824012823 is a TVS - Diodes manufactured by Würth Elektronik. TVS DIODE 3.3VWM 13VC DFN1210-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 85°C (TA), package / case 6-XFDFN.

Datasheet Request a Quote

In Stock: 3,036

Tiered Pricing USD

1+ $0.6900 —

10+ $0.6290 -9%

100+ $0.5760 -17%

500+ $0.5120 -26%

1,000+ $0.4580 -34% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	2
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	4.5V
Voltage - Clamping (Max) @ Ipp	13V (Typ)
Current - Peak Pulse (10/1000µs)	3A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.18pF @ 1MHz
Operating Temperature	-55°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-XFDFN
Supplier Device Package	DFN1210-6
