Name: 140817140310
Brand: Würth Elektronik
SKU: 140817140310
Price: 0.26 USD
Availability: InStock

REF: 140817140310 Würth Elektronik

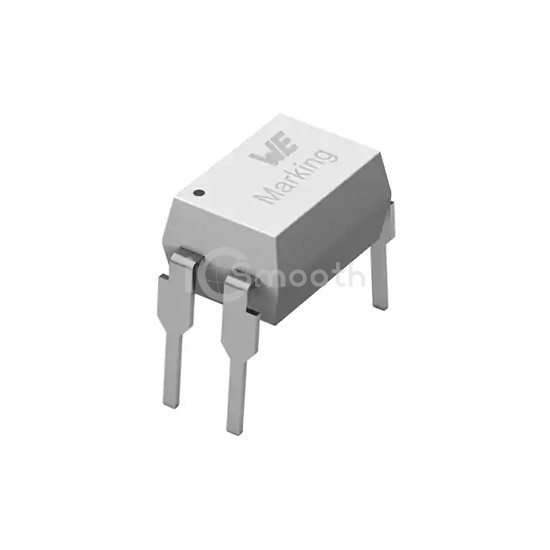

140817140310

WL-OCPT OPTOCOUPLER PHOTOTRANSIS

140817140310 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Würth Elektronik. WL-OCPT OPTOCOUPLER PHOTOTRANSIS. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.24V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 79

Tiered Pricing USD

1+ $0.2600 —

10+ $0.2270 -13%

25+ $0.2088 -20%

50+ $0.1900 -27%

100+ $0.1719 -34%

500+ $0.1650 -37% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	200% @ 5mA
Current Transfer Ratio (Max)	400% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	3µs, 4µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	35V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.24V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	200mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
