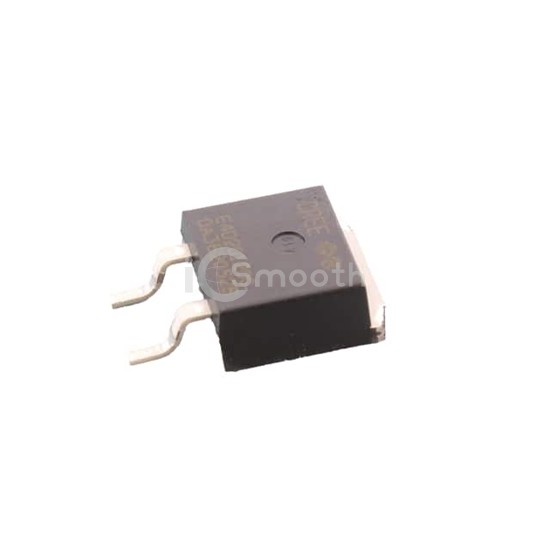

1200 V 20 A SCHOTTKY DIODE (SING
E4D20120G is a Diodes - Rectifiers - Single manufactured by Wolfspeed, Inc.. 1200 V 20 A SCHOTTKY DIODE (SING. Key specifications: mounting type Surface Mount, package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.
In Stock: 6,130
| Product Status | Active |
|---|---|
| Diode Type | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 56A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 20 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 200 µA @ 200 µA |
|---|---|
| Capacitance @ Vr, F | 1474pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
