Name: ESDALD05UE2X
Brand: WeEn Semiconductors
SKU: ESDALD05UE2X
Price: 0.23 USD
Availability: InStock

REF: ESDALD05UE2X WeEn Semiconductors

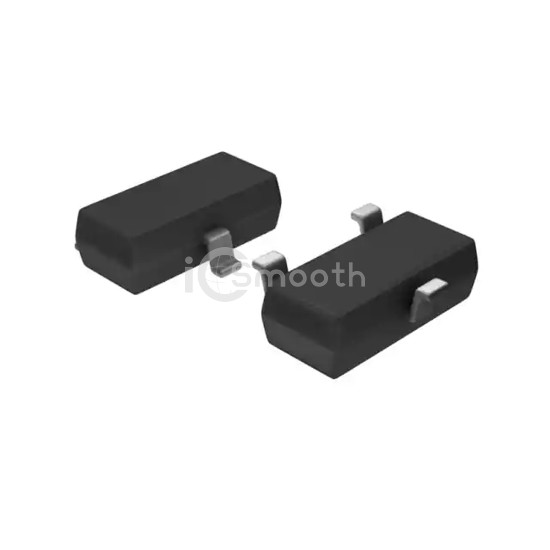

ESDALD05UE2X

WeEn Semiconductors

THE ESDALD05UE2 IS A LOW CAPACIT

ESDALD05UE2X is a TVS - Diodes manufactured by WeEn Semiconductors. THE ESDALD05UE2 IS A LOW CAPACIT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 89,970

Tiered Pricing USD

1+ $0.2300 —

10+ $0.1540 -33%

100+ $0.0570 -75% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	2
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	15V
Current - Peak Pulse (10/1000µs)	4A (8/20µs)

Power - Peak Pulse	60W
Power Line Protection	Yes
Applications	DVI, HDMI, USB
Capacitance @ Frequency	0.5pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT23-3L
