Name: BT258U-600R,127
Brand: WeEn Semiconductors
SKU: BT258U-600R,127
Price: 0.34 USD
Availability: InStock

REF: BT258U-600R,127 WeEn Semiconductors

BT258U-600R,127

WeEn Semiconductors

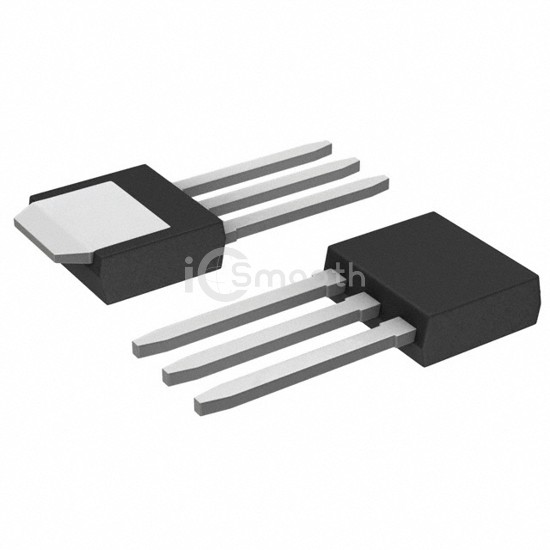

SCR 600V 8A IPAK

BT258U-600R,127 is a Thyristors - SCRs manufactured by WeEn Semiconductors. SCR 600V 8A IPAK. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 7,718

Specifications

15 parameters

Product Status	Active
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	200 µA
Voltage - On State (Vtm) (Max)	1.5 V
Current - On State (It (AV)) (Max)	5 A
Current - On State (It (RMS)) (Max)	8 A
Current - Hold (Ih) (Max)	6 mA

Current - Off State (Max)	500 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	75A, 82A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package	I-PAK
