Name: BT169D-L,116
Brand: WeEn Semiconductors
SKU: BT169D-L,116
Price: 0.43 USD
Availability: InStock

REF: BT169D-L,116 WeEn Semiconductors

BT169D-L,116

WeEn Semiconductors

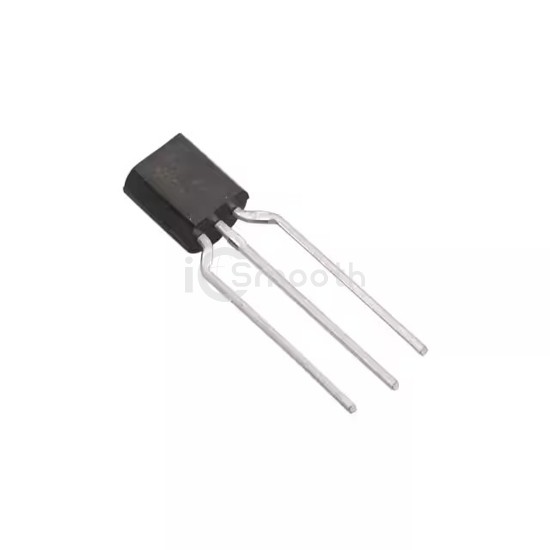

SCR 400V 800MA TO92-3

BT169D-L,116 is a Thyristors - SCRs manufactured by WeEn Semiconductors. SCR 400V 800MA TO92-3. Key specifications: mounting type Through Hole, operating temperature 125°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA) Formed Leads.

Datasheet Request a Quote

In Stock: 20,356

Tiered Pricing USD

1+ $0.4300 —

10+ $0.2650 -38%

100+ $0.1675 -61%

500+ $0.1250 -71%

1,000+ $0.1113 -74% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	400 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	50 µA
Voltage - On State (Vtm) (Max)	1.7 V
Current - On State (It (AV)) (Max)	500 mA
Current - On State (It (RMS)) (Max)	800 mA
Current - Hold (Ih) (Max)	1 mA

Current - Off State (Max)	2 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	8A, 9A
SCR Type	Sensitive Gate
Operating Temperature	125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Supplier Device Package	TO-92-3
