Name: BT151U-500C,127
Brand: WeEn Semiconductors
SKU: BT151U-500C,127
Price: 0.26 USD
Availability: InStock

REF: BT151U-500C,127 WeEn Semiconductors

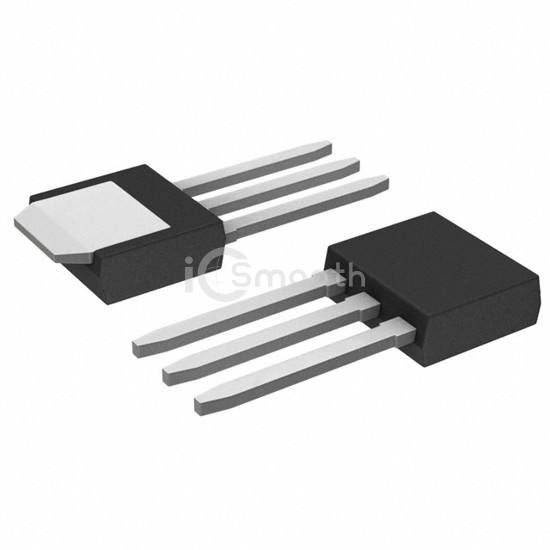

BT151U-500C,127

WeEn Semiconductors

SCR 500V 12A IPAK

BT151U-500C,127 is a Thyristors - SCRs manufactured by WeEn Semiconductors. SCR 500V 12A IPAK. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 8,851

Specifications

15 parameters

Product Status	Active
Voltage - Off State	500 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	15 mA
Voltage - On State (Vtm) (Max)	1.75 V
Current - On State (It (AV)) (Max)	7.5 A
Current - On State (It (RMS)) (Max)	12 A
Current - Hold (Ih) (Max)	20 mA

Current - Off State (Max)	500 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	100A, 110A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package	I-PAK
