Name: BT151-650LTNQ
Brand: WeEn Semiconductors
SKU: BT151-650LTNQ
Price: 1.02 USD
Availability: InStock

REF: BT151-650LTNQ WeEn Semiconductors

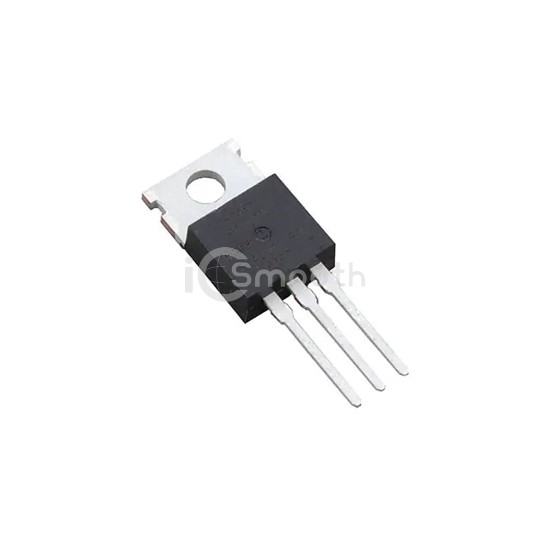

BT151-650LTNQ

WeEn Semiconductors

SCR 650V 12A TO220AB

BT151-650LTNQ is a Thyristors - SCRs manufactured by WeEn Semiconductors. SCR 650V 12A TO220AB. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 9,054

Tiered Pricing USD

1+ $1.0200 —

50+ $0.4702 -54%

100+ $0.4160 -59%

500+ $0.3209 -69%

1,000+ $0.2903 -72%

2,000+ $0.2645 -74%

5,000+ $0.2365 -77% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	650 V
Voltage - Gate Trigger (Vgt) (Max)	1 V
Current - Gate Trigger (Igt) (Max)	5 mA
Voltage - On State (Vtm) (Max)	1.5 V
Current - On State (It (AV)) (Max)	7.5 A
Current - On State (It (RMS)) (Max)	12 A
Current - Hold (Ih) (Max)	20 mA

Current - Off State (Max)	1 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	120A, 132A
SCR Type	Sensitive Gate
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220AB
