Name: SUM90100E-GE3
Brand: Vishay Siliconix
SKU: SUM90100E-GE3
Price: 4.21 USD
Availability: InStock

REF: SUM90100E-GE3 Vishay Siliconix

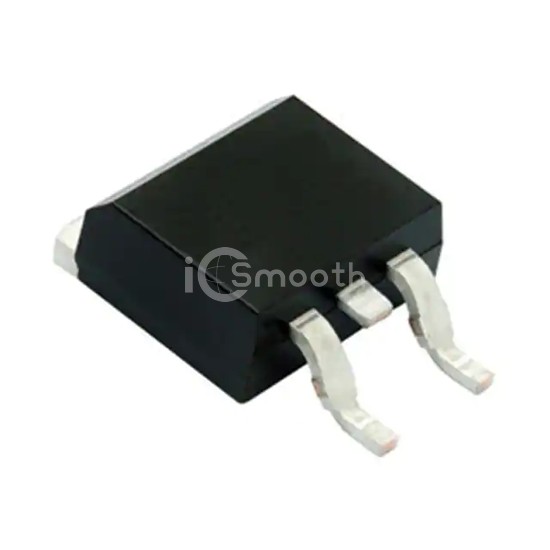

SUM90100E-GE3

Vishay Siliconix

N-CHANNEL 200-V (D-S) MOSFET D2P

SUM90100E-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 200-V (D-S) MOSFET D2P. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 2,582

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	150A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	7.5V, 10V
Rds On (Max) @ Id, Vgs	11.4mOhm @ 16A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	110 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3930 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	375W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263 (D²Pak)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
