Name: SUM60061EL-GE3
Brand: Vishay Siliconix
SKU: SUM60061EL-GE3
Price: 6.21 USD
Availability: InStock

REF: SUM60061EL-GE3 Vishay Siliconix

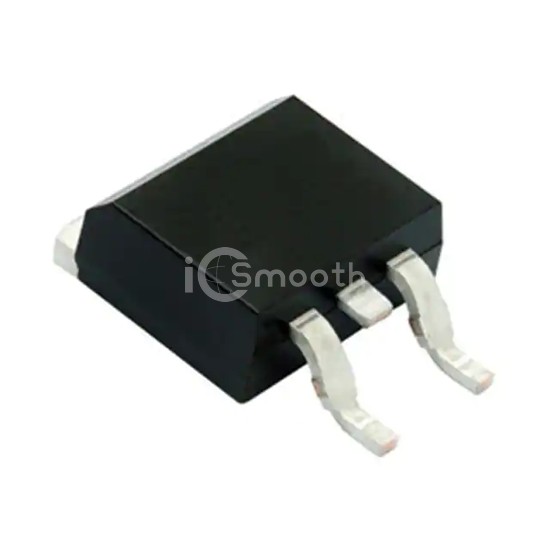

SUM60061EL-GE3

Vishay Siliconix

P-CHANNEL 80 V (D-S) MOSFET D2PA

SUM60061EL-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. P-CHANNEL 80 V (D-S) MOSFET D2PA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 1,373

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	150A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.1mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	218 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	9600 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	375W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263 (D²Pak)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
