Name: SUM40014M-GE3
Brand: Vishay Siliconix
SKU: SUM40014M-GE3
Price: 3.65 USD
Availability: InStock

REF: SUM40014M-GE3 Vishay Siliconix

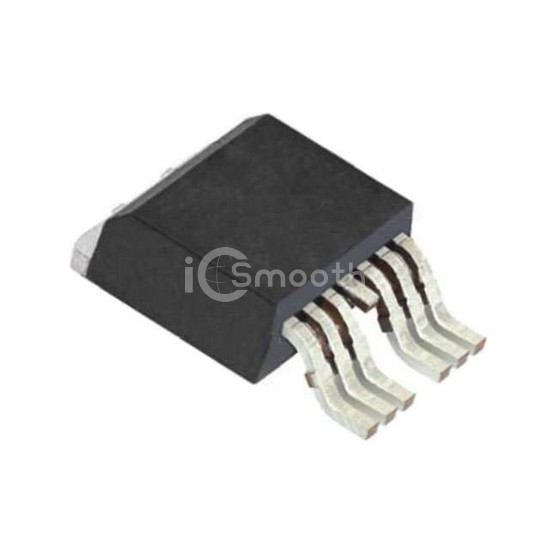

SUM40014M-GE3

Vishay Siliconix

MOSFET N-CH 40V 200A TO263-7

SUM40014M-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 40V 200A TO263-7. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).

Datasheet Request a Quote

In Stock: 2,104

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	200A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	0.99Ohm @ 20A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	275 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	15780 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	375W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263-7
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
