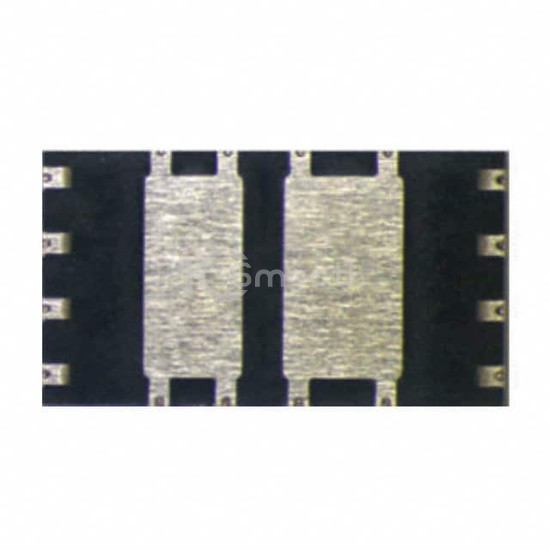

Name: SQUN702E-T1_GE3
Brand: Vishay Siliconix
SKU: SQUN702E-T1_GE3
Price: 3.81 USD
Availability: InStock

REF: SQUN702E-T1_GE3 Vishay Siliconix

SQUN702E-T1_GE3

Vishay Siliconix

MOSFET N&P-CH COMMON DRAIN

SQUN702E-T1_GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET N&P-CH COMMON DRAIN. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case Die, power - max 48W (Tc), 60W (Tc).

Datasheet Request a Quote

In Stock: 1,638

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel, Common Drain
FET Feature	Standard
Drain to Source Voltage (Vdss)	40V, 200V
Current - Continuous Drain (Id) @ 25°C	30A (Tc), 20A (Tc)
Rds On (Max) @ Id, Vgs	9.2mOhm @ 9.8A, 10V, 60mOhm @ 5A, 10V, 30mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA, 3.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	23nC @ 20V, 14nC @ 20V, 30.2nC @ 100V
Input Capacitance (Ciss) (Max) @ Vds	1474pF @ 20V, 1450pF @ 20V, 1302pF @ 100V
Power - Max	48W (Tc), 60W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	Die
Supplier Device Package	Die
