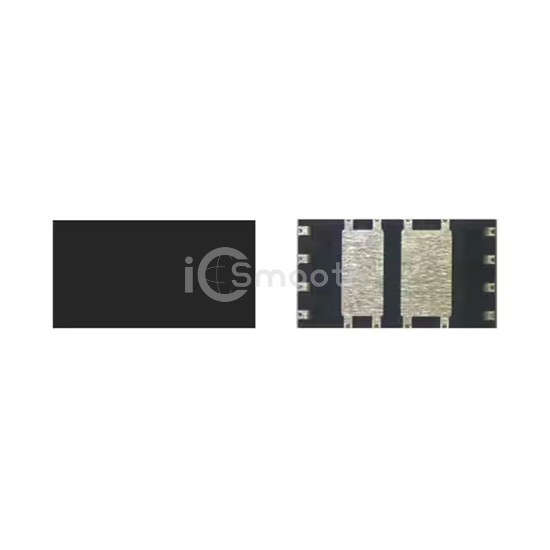

Name: SQUN700E-T1_GE3
Brand: Vishay Siliconix
SKU: SQUN700E-T1_GE3
Price: 2.55 USD
Availability: InStock

REF: SQUN700E-T1_GE3 Vishay Siliconix

SQUN700E-T1_GE3

Vishay Siliconix

40-V N- & P-CH COMMON DRAIN + 20

SQUN700E-T1_GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. 40-V N- & P-CH COMMON DRAIN + 20. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case Die, power - max 50W (Tc), 48W (Tc).

Datasheet Request a Quote

In Stock: 2,796

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual), P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	200V, 40V
Current - Continuous Drain (Id) @ 25°C	16A (Tc), 30A (Tc)
Rds On (Max) @ Id, Vgs	9.2mOhm @ 9.8A, 10V, 75mOhm @ 5A, 10V, 30mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	3.5V @ 250µA, 2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	23nC @ 10V, 11nC @ 10V, 30.2nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1474pF @ 20V, 600pF @ 100V, 1302pF @ 100V
Power - Max	50W (Tc), 48W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	Die
Supplier Device Package	Die
