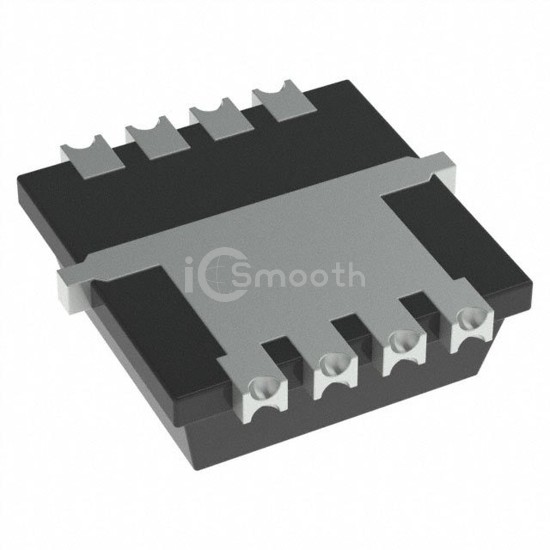

Name: SQS415ENW-T1_GE3
Brand: Vishay Siliconix
SKU: SQS415ENW-T1_GE3
Price: 1.12 USD
Availability: InStock

REF: SQS415ENW-T1_GE3 Vishay Siliconix

SQS415ENW-T1_GE3

Vishay Siliconix

MOSFET P-CH 40V 16A PPAK1212-8W

SQS415ENW-T1_GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 40V 16A PPAK1212-8W. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® 1212-8W.

Datasheet Request a Quote

In Stock: 2,819

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	16.1mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	82 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4825 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	62.5W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® 1212-8W
Package / Case	PowerPAK® 1212-8W
