Name: SQR70090ELR_GE3
Brand: Vishay Siliconix
SKU: SQR70090ELR_GE3
Price: 1.65 USD
Availability: InStock

REF: SQR70090ELR_GE3 Vishay Siliconix

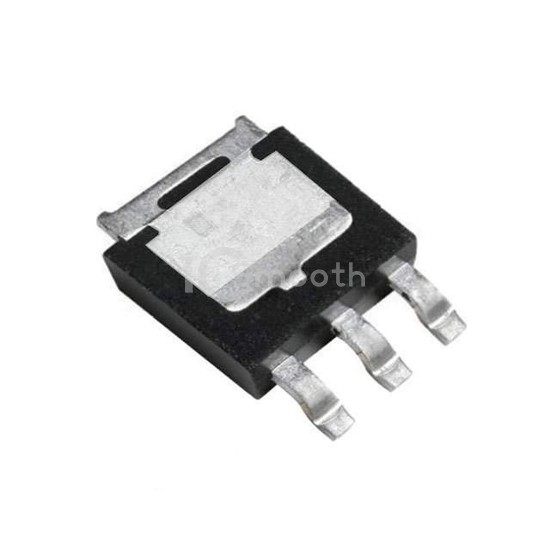

SQR70090ELR_GE3

Vishay Siliconix

MOSFET N-CH 100V 86A DPAK

SQR70090ELR_GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 100V 86A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-4, DPak (3 Leads + Tab).

Datasheet Request a Quote

In Stock: 4,493

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	86A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.7mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	65 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3500 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	136W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D-PAK (TO-252)
Package / Case	TO-252-4, DPak (3 Leads + Tab)
