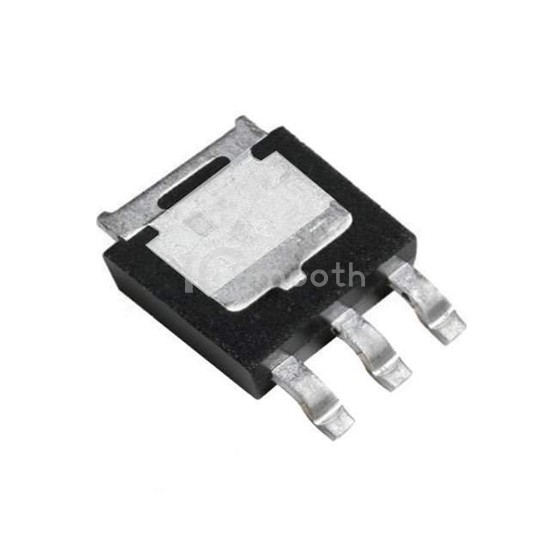

Name: SQR40020ER_GE3
Brand: Vishay Siliconix
SKU: SQR40020ER_GE3
Price: 1.93 USD
Availability: InStock

REF: SQR40020ER_GE3 Vishay Siliconix

SQR40020ER_GE3

Vishay Siliconix

MOSFET N-CH 40V 100A TO252 REV

SQR40020ER_GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 40V 100A TO252 REV. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-4, DPak (3 Leads + Tab).

Datasheet Request a Quote

In Stock: 3,546

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.33mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	130 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8000 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	107W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252 (DPAK) Reverse Lead
Package / Case	TO-252-4, DPak (3 Leads + Tab)
