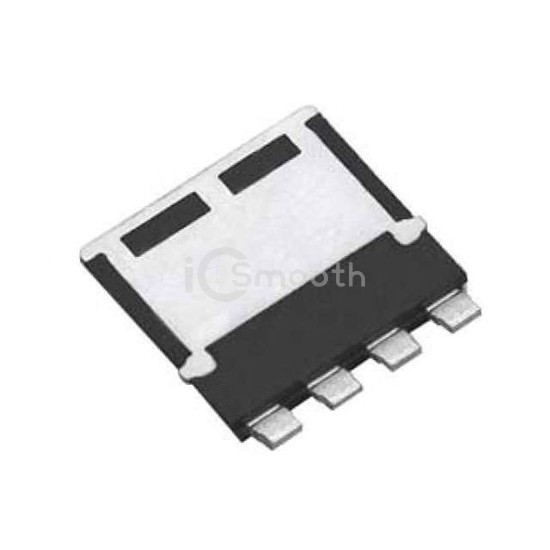

Name: SQJQ900E-T1_GE3
Brand: Vishay Siliconix
SKU: SQJQ900E-T1_GE3
Price: 1.43 USD
Availability: InStock

REF: SQJQ900E-T1_GE3 Vishay Siliconix

SQJQ900E-T1_GE3

Vishay Siliconix

MOSFET 2 N-CH 40V POWERPAK8X8

SQJQ900E-T1_GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET 2 N-CH 40V POWERPAK8X8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® 8 x 8 Dual, power - max 75W.

Datasheet Request a Quote

In Stock: 8,963

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Rds On (Max) @ Id, Vgs	3.9mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	120nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	5900pF @ 20V
Power - Max	75W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® 8 x 8 Dual
Supplier Device Package	PowerPAK® 8 x 8 Dual
