Name: SQJQ131EL-T1_GE3
Brand: Vishay Siliconix
SKU: SQJQ131EL-T1_GE3
Price: 3.49 USD
Availability: InStock

REF: SQJQ131EL-T1_GE3 Vishay Siliconix

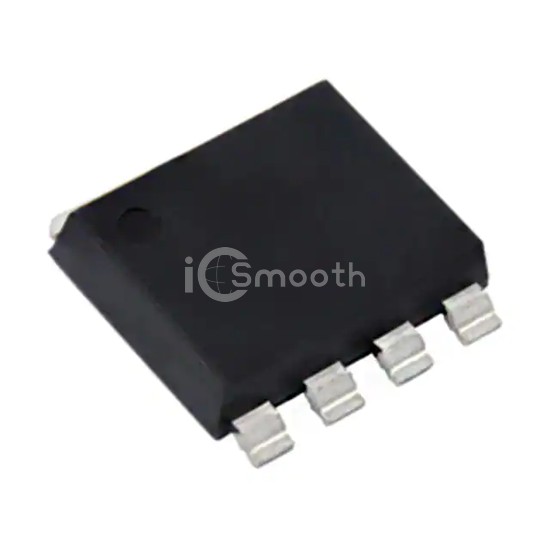

SQJQ131EL-T1_GE3

Vishay Siliconix

AUTOMOTIVE P-CHANNEL 30 V (D-S)

SQJQ131EL-T1_GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. AUTOMOTIVE P-CHANNEL 30 V (D-S). Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® 8 x 8.

Request a Quote

In Stock: 6,533

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	280A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.4mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	731 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	33050 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	600W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® 8 x 8
Package / Case	PowerPAK® 8 x 8
