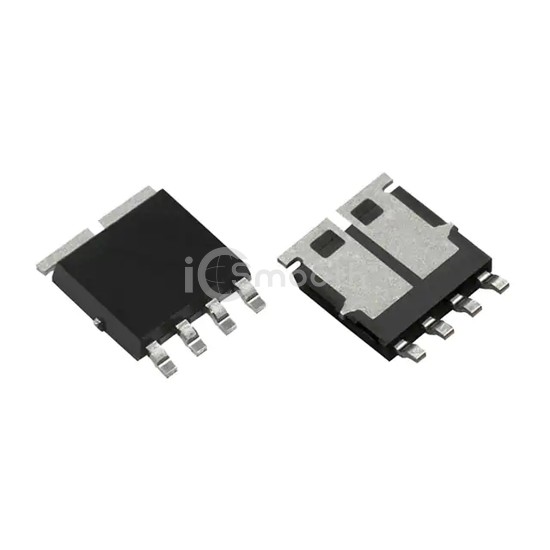

Name: SQJB80EP-T1_BE3
Brand: Vishay Siliconix
SKU: SQJB80EP-T1_BE3
Price: 1.25 USD
Availability: InStock

REF: SQJB80EP-T1_BE3 Vishay Siliconix

SQJB80EP-T1_BE3

Vishay Siliconix

DUAL N-CHANNEL 80-V (D-S) 175C M

SQJB80EP-T1_BE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. DUAL N-CHANNEL 80-V (D-S) 175C M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8 Dual, power - max 48W (Tc).

Datasheet Request a Quote

In Stock: 8,717

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	80V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Rds On (Max) @ Id, Vgs	19mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	32nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1400pF @ 25V
Power - Max	48W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® SO-8 Dual
Supplier Device Package	PowerPAK® SO-8 Dual
