Name: SQJA68EP-T1_GE3
Brand: Vishay Siliconix
SKU: SQJA68EP-T1_GE3
Price: 0.87 USD
Availability: InStock

REF: SQJA68EP-T1_GE3 Vishay Siliconix

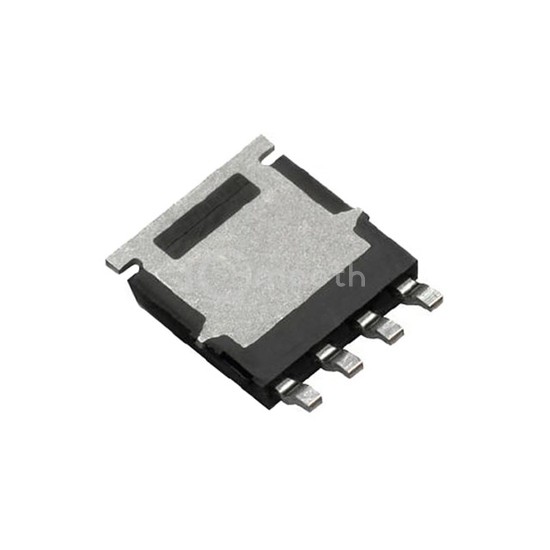

SQJA68EP-T1_GE3

Vishay Siliconix

MOSFET N-CH 100V 14A PPAK SO-8L

SQJA68EP-T1_GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 100V 14A PPAK SO-8L. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8L.

Datasheet Request a Quote

In Stock: 8,053

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	92mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	280 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	45W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8L
Package / Case	PowerPAK® SO-8L
