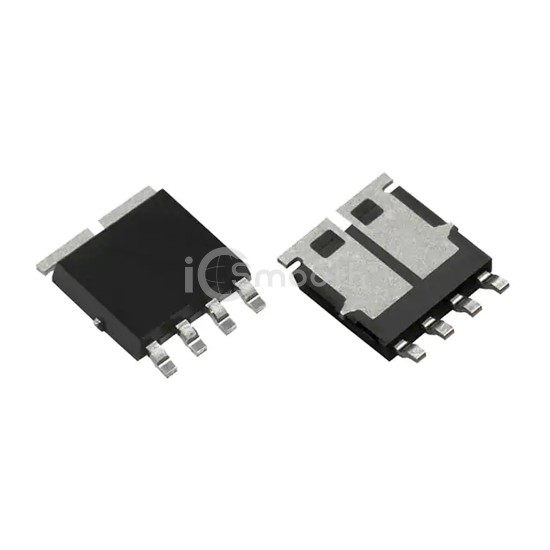

Name: SQJ952EP-T1_BE3
Brand: Vishay Siliconix
SKU: SQJ952EP-T1_BE3
Price: 1.20 USD
Availability: InStock

REF: SQJ952EP-T1_BE3 Vishay Siliconix

SQJ952EP-T1_BE3

Vishay Siliconix

DUAL N-CHANNEL 60-V (D-S) 175C M

SQJ952EP-T1_BE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. DUAL N-CHANNEL 60-V (D-S) 175C M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8, power - max 25W (Tc).

Datasheet Request a Quote

In Stock: 2,808

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	23A (Tc)
Rds On (Max) @ Id, Vgs	20mOhm @ 10.3A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	30nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1800pF @ 30V
Power - Max	25W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® SO-8
Supplier Device Package	PowerPAK® SO-8
