Name: SQJ570EP-T1_GE3
Brand: Vishay Siliconix
SKU: SQJ570EP-T1_GE3
Price: 1.27 USD
Availability: InStock

REF: SQJ570EP-T1_GE3 Vishay Siliconix

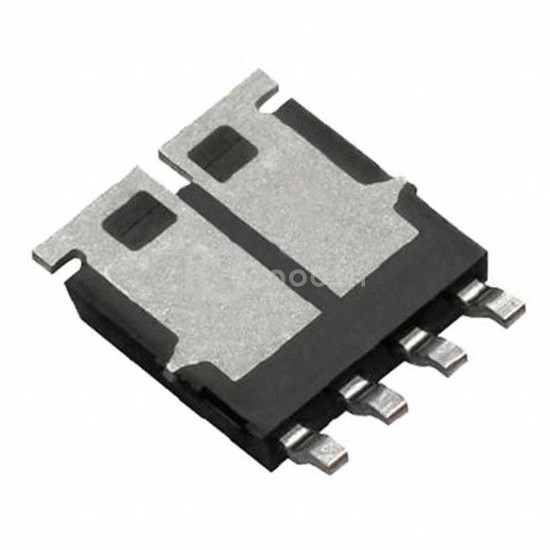

SQJ570EP-T1_GE3

Vishay Siliconix

MOSFET N/P-CH 100V POWERPAK SO8

SQJ570EP-T1_GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET N/P-CH 100V POWERPAK SO8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8 Dual, power - max 27W.

Datasheet Request a Quote

In Stock: 2,311

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	15A (Tc), 9.5A (Tc)
Rds On (Max) @ Id, Vgs	45mOhm @ 6A, 10V, 146mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	20nC @ 10V, 15nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	650pF @ 25V, 600pF @ 25V
Power - Max	27W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® SO-8 Dual
Supplier Device Package	PowerPAK® SO-8 Dual
