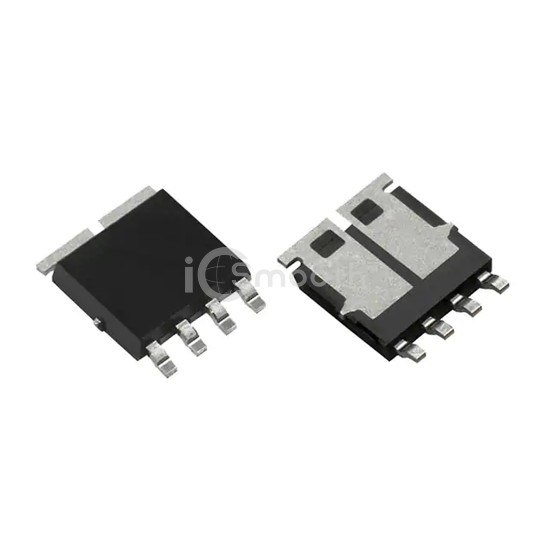

Name: SQJ570EP-T1_BE3
Brand: Vishay Siliconix
SKU: SQJ570EP-T1_BE3
Price: 1.15 USD
Availability: InStock

REF: SQJ570EP-T1_BE3 Vishay Siliconix

SQJ570EP-T1_BE3

Vishay Siliconix

N- AND P-CHANNEL 100-V (D-S) 175

SQJ570EP-T1_BE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. N- AND P-CHANNEL 100-V (D-S) 175. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8 Dual, power - max 27W (Tc).

Datasheet Request a Quote

In Stock: 1,512

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	15A (Tc), 9.5A (Tc)
Rds On (Max) @ Id, Vgs	45mOhm @ 6A, 10V, 146mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	15nC @ 10V, 20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	600pF @ 25V, 650pF @ 25V
Power - Max	27W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® SO-8 Dual
Supplier Device Package	PowerPAK® SO-8 Dual
