Name: SQJ560EP-T1_GE3
Brand: Vishay Siliconix
SKU: SQJ560EP-T1_GE3
Price: 1.55 USD
Availability: InStock

REF: SQJ560EP-T1_GE3 Vishay Siliconix

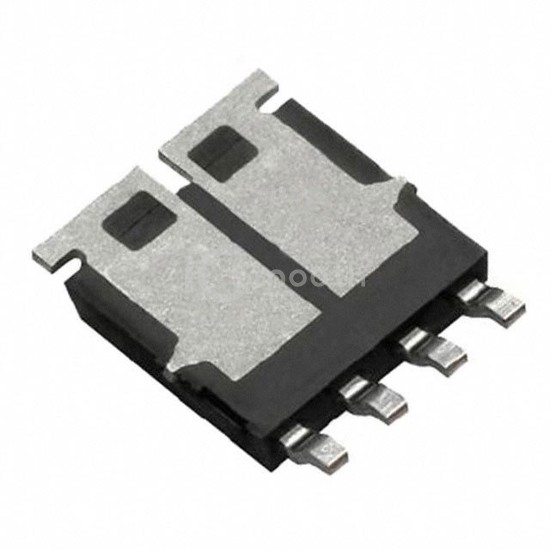

SQJ560EP-T1_GE3

Vishay Siliconix

MOSFET DUAL N P CH 60V PPAK SO-8

SQJ560EP-T1_GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET DUAL N P CH 60V PPAK SO-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8 Dual, power - max 34W (Tc).

Datasheet Request a Quote

In Stock: 5,910

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	30A (Tc), 18A (Tc)
Rds On (Max) @ Id, Vgs	12mOhm @ 10A, 10V, 52.6mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	30nC @ 10V, 45nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1650pF @ 25V
Power - Max	34W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® SO-8 Dual
Supplier Device Package	PowerPAK® SO-8 Dual
