Name: SQJ500AEP-T1_BE3
Brand: Vishay Siliconix
SKU: SQJ500AEP-T1_BE3
Price: 1.69 USD
Availability: InStock

REF: SQJ500AEP-T1_BE3 Vishay Siliconix

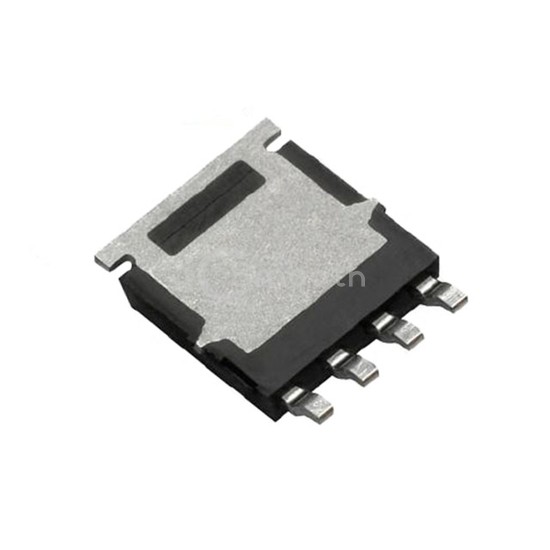

SQJ500AEP-T1_BE3

Vishay Siliconix

MOSFET N/P CHAN 40V SO8L DUAL

SQJ500AEP-T1_BE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET N/P CHAN 40V SO8L DUAL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8, power - max 48W (Tc).

Request a Quote

In Stock: 4,446

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Rds On (Max) @ Id, Vgs	9.2mOhm @ 9.8A, 10V, 27mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	2.3V @ 250µA, 2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	38.3nC @ 10V, 45nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1843pF @ 20V, 1628pF @ 20V
Power - Max	48W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® SO-8
Supplier Device Package	PowerPAK® SO-8
