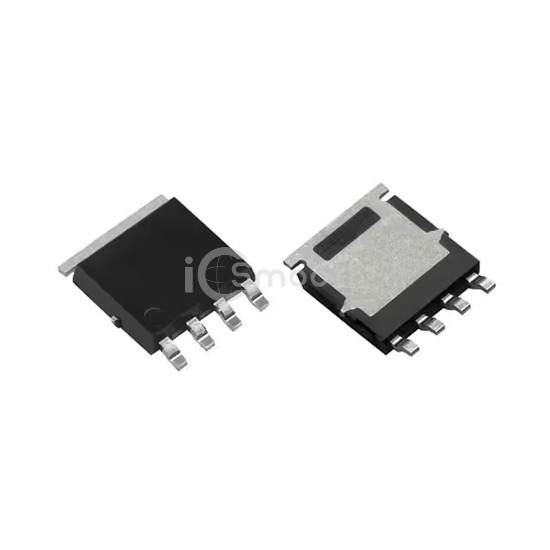

Name: SQJ433EP-T1_BE3
Brand: Vishay Siliconix
SKU: SQJ433EP-T1_BE3
Price: 1.48 USD
Availability: InStock

REF: SQJ433EP-T1_BE3 Vishay Siliconix

SQJ433EP-T1_BE3

Vishay Siliconix

P-CHANNEL 30-V (D-S) 175C MOSFET

SQJ433EP-T1_BE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. P-CHANNEL 30-V (D-S) 175C MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8.

Datasheet Request a Quote

In Stock: 2,575

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.1mOhm @ 16A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	108 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4877 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	83W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
