Name: SQJ411EP-T1_GE3
Brand: Vishay Siliconix
SKU: SQJ411EP-T1_GE3
Price: 1.39 USD
Availability: InStock

REF: SQJ411EP-T1_GE3 Vishay Siliconix

SQJ411EP-T1_GE3

Vishay Siliconix

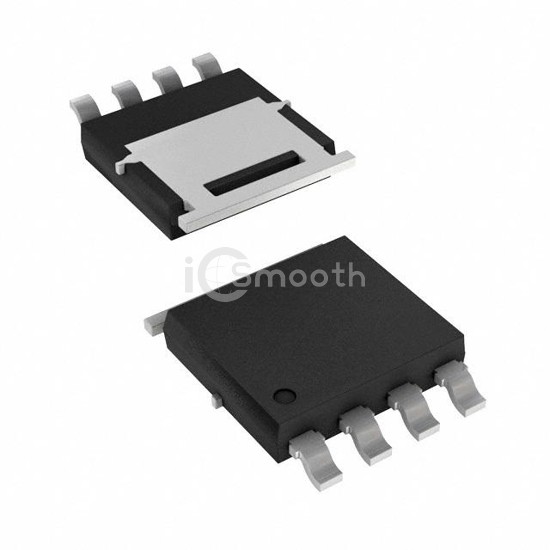

MOSFET P-CH 12V 60A PPAK SO-8

SQJ411EP-T1_GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 12V 60A PPAK SO-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8.

Datasheet Request a Quote

In Stock: 4,563

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	5.8mOhm @ 15A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	150 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	9100 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	68W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
