Name: SQJ264EP-T1_GE3
Brand: Vishay Siliconix
SKU: SQJ264EP-T1_GE3
Price: 1.68 USD
Availability: InStock

REF: SQJ264EP-T1_GE3 Vishay Siliconix

SQJ264EP-T1_GE3

Vishay Siliconix

AUTOMOTIVE DUAL N-CHANNEL 60 V (

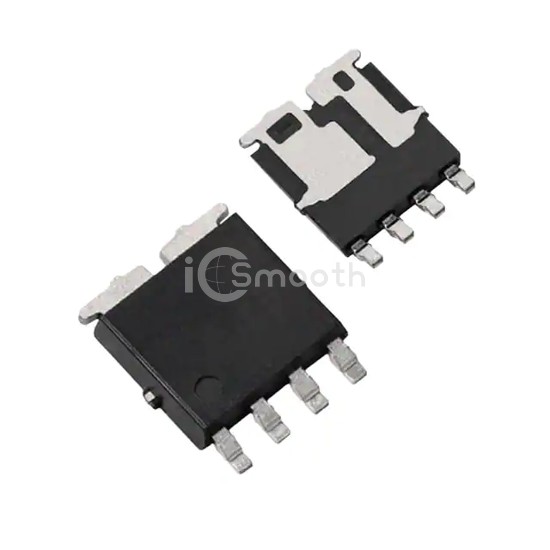

SQJ264EP-T1_GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. AUTOMOTIVE DUAL N-CHANNEL 60 V (. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8 Dual, power - max 27W (Tc), 48W (Tc).

Datasheet Request a Quote

In Stock: 8,308

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual) Asymmetrical
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	20A (Tc), 54A (Tc)
Rds On (Max) @ Id, Vgs	20mOhm @ 6A, 10V, 8.6mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	3.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	16nC @ 10V, 32nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1000pF @ 25V, 2100pF @ 25V
Power - Max	27W (Tc), 48W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® SO-8 Dual
Supplier Device Package	PowerPAK® SO-8 Dual Asymmetric
