Name: SQJ262EP-T1_GE3
Brand: Vishay Siliconix
SKU: SQJ262EP-T1_GE3
Price: 1.42 USD
Availability: InStock

REF: SQJ262EP-T1_GE3 Vishay Siliconix

SQJ262EP-T1_GE3

Vishay Siliconix

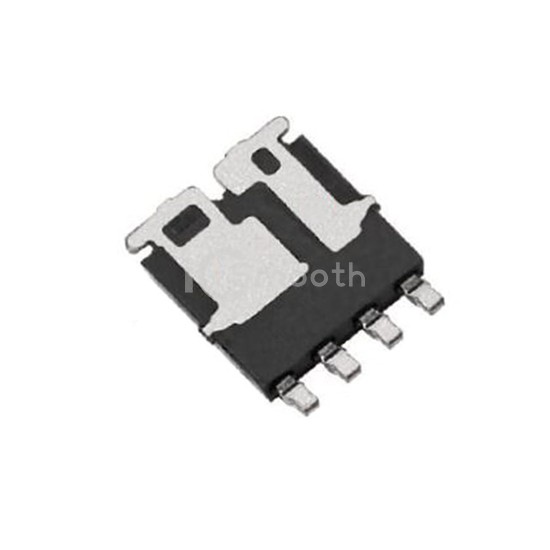

MOSFET 2 N-CH 60V POWERPAK SO8

SQJ262EP-T1_GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET 2 N-CH 60V POWERPAK SO8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8 Dual, power - max 27W (Tc), 48W (Tc).

Datasheet Request a Quote

In Stock: 2,858

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	15A (Tc), 40A (Tc)
Rds On (Max) @ Id, Vgs	35.5mOhm @ 2A, 10V, 15.5mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	10nC @ 10V, 23nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	550pF @ 25V, 1260pF @ 25V
Power - Max	27W (Tc), 48W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® SO-8 Dual
Supplier Device Package	PowerPAK® SO-8 Dual Asymmetric
