Name: SQJ204EP-T1_GE3
Brand: Vishay Siliconix
SKU: SQJ204EP-T1_GE3
Price: 1.55 USD
Availability: InStock

REF: SQJ204EP-T1_GE3 Vishay Siliconix

SQJ204EP-T1_GE3

Vishay Siliconix

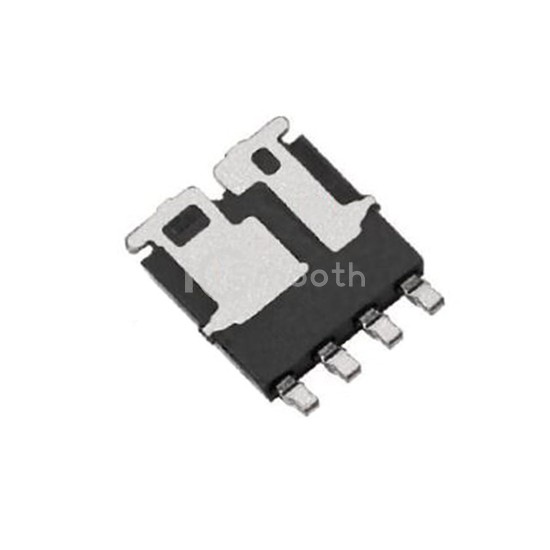

MOSFET DUAL N-CH 12V PPAK SO-8L

SQJ204EP-T1_GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET DUAL N-CH 12V PPAK SO-8L. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8 Dual, power - max 27W (Tc), 48W (Tc).

Datasheet Request a Quote

In Stock: 5,842

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual) Asymmetrical
FET Feature	Standard
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	20A (Tc), 60A (Tc)
Rds On (Max) @ Id, Vgs	8.3mOhm @ 4A, 10V, 3mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	1.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	20nC @ 10V, 50nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1400pF @ 6V, 3700pF @ 6V
Power - Max	27W (Tc), 48W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® SO-8 Dual
Supplier Device Package	PowerPAK® SO-8 Dual Asymmetric
